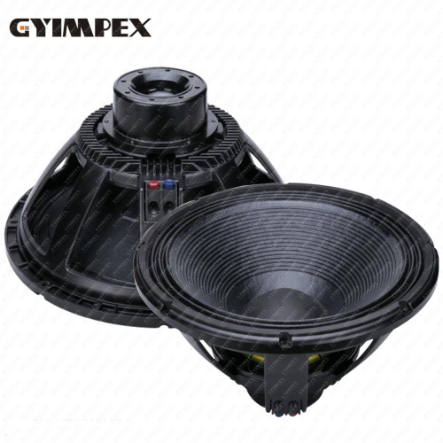

18 inch full range neodymium line array PRO audio professional, 900watts speakers for dj sound box

General Specifications

 Nominal diameter:466MM/18 inch

Nominal impedance:8 ohm

Nominal Power Handling: 900W

Continuous Power Handling:1800W

Sensitivity 1W/1M :97 dB

 Frequency range: 35 - 1500 Hz

voice coil diameter: 100mm/4 inch

Winding Material :Copper

Magnet : Neodymium Ring

Thiele & Small Parameters

Fs (Resonance Frequency ):34Hz

Re (DC Resistance):5.1ohm

Qms(Mechanical Factor ):7.32

Qes(Electrical Factor ):0.23

Qts(Total Factor ):0.22

Vas(Equivalent Cas Air Load):160L

Mms(Effective Moving Mass):158gr

Bl(BL Factor ):27.8T.m

Sd(Effettive Piston Area ):922cm²

Mounting & Shipping Information

 Overall Diameter :466mm

Bolt circle Diameter :442mm

Baffle Cutout Diameter:421mm

Depth:210mm

Net Weight:10.5kg Shipping Weight:12kg
