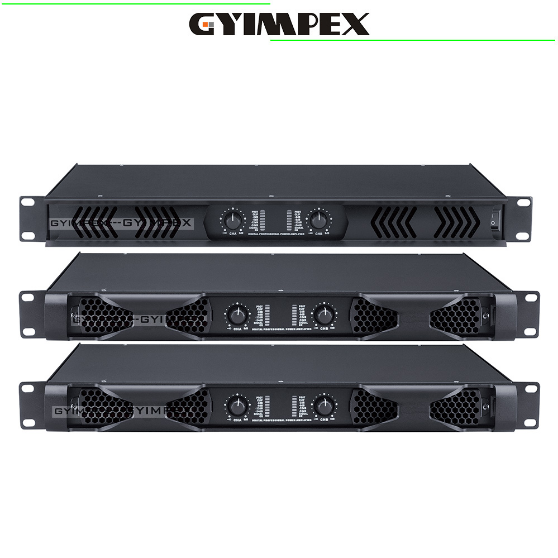

D series 1U 2 channel Class D PFC digital amplifier Pro Sound DJ Equipment Professional Touring grade Amplifiers
D series high quality 2 channel Stereo digital power amplifier Product Characteristic from GYIMPEX AUDIO CHINA FACTORY
1) 1U height 9 "width of standard cabinet, compact size, lightweight and
portable；
2) Class D power module with fixed switching frequency；
3) The soft start LLC resonant SMPS module；
4) The active power factor correction (PFC), can be stable working in full voltage range (90-264V)；
5) The efficient speaker EMF absorption system；
6)The unique peak limiter and ripple cancellation network；
7) The fan with temperature control and variable speed, airflow from front to rear；
8) Connection mode selection (stereo / parallel / bridge)；
9) Input sensitivity switch (0.775v/1v/32dB)；
10) The whole circuit protection, including: soft start, DC, infrasonic frequency, VHF, overheat, short circuit, mute on / off；
11) The low frequency powerful, depth is extremely low, mid high frequency with high transparent, clear and sweet；
12) The integration design of the power amplifier module and power supply module, more than 85% components with mechanical
automation operation, to ensure the consistency of the product；
13)In conclusion, power amplifiers that use PFC present several benefits over those that don’t. PFC helps to reduce costs by
pulling less reactive power, increase acceptable voltage range to ensure universally clean operation around the world, and reduce
unwanted distortion for friendly and clean power.
13) Applications : The touring / portable audio performance； The KTV/ bar / Music Hall； The stadium / arena；
-----------------------------------------------------------------------------------------------
MODEL: BX01
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 3000W*2
Stereo power 4Ω :4700W*2
Stereo power 2Ω: 6300W*2
bridge power 8Ω :6000W
bridge power 4Ω: 7500W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 8.9kg
---------------------------------------------------------------------------------------------------------------------------------MODEL: BX061U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
1) 1U height 9 "width of standard cabinet, compact size, lightweight and
portable；
2) Class D power module with fixed switching frequency；
3) The soft start LLC resonant SMPS module；
4) The active power factor correction (PFC), can be stable working in full voltage range (90-264V)；
5) The efficient speaker EMF absorption system；
6)The unique peak limiter and ripple cancellation network；
7) The fan with temperature control and variable speed, airflow from front to rear；
8) Connection mode selection (stereo / parallel / bridge)；
9) Input sensitivity switch (0.775v/1v/32dB)；
10) The whole circuit protection, including: soft start, DC, infrasonic frequency, VHF, overheat, short circuit, mute on / off；
11) The low frequency powerful, depth is extremely low, mid high frequency with high transparent, clear and sweet；
12) The integration design of the power amplifier module and power supply module, more than 85% components with mechanical
automation operation, to ensure the consistency of the product；
13)In conclusion, power amplifiers that use PFC present several benefits over those that don’t. PFC helps to reduce costs by
pulling less reactive power, increase acceptable voltage range to ensure universally clean operation around the world, and reduce
unwanted distortion for friendly and clean power.
13) Applications : The touring / portable audio performance； The KTV/ bar / Music Hall； The stadium / arena；
-----------------------------------------------------------------------------------------------
MODEL: BX01
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 3000W*2 Stereo power 4Ω :4700W*2 Stereo power 2Ω: 6300W*2 bridge power 8Ω :6000W bridge power 4Ω: 7500W Power supply voltage: PFC style 90V-260V 50-60HZ
Stereo power 8Ω: 2800W*2
Stereo power 4Ω :4500W*2
Stereo power 2Ω: 5500W*2
bridge power 8Ω :9000W
bridge power 4Ω: 12000W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 8.8kg
-------------------------------------------------------------------------------------------------------------------------------------MODEL: BX02
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 2500W*2
Stereo power 4Ω :4000W*2
Stereo power 2Ω: 5250W*2
bridge power 8Ω :5000W
bridge power 4Ω: 6300W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 8.7kg
-------------------------------------------------------------------------------------------------------------------------------------
MODEL: BX05
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 2400W*2
Stereo power 4Ω :3800W*2
Stereo power 2Ω: 5000W*2
bridge power 8Ω :7600W
bridge power 4Ω: 10000W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 8.5kg
-------------------------------------------------------------------------------------------------------------------------------------MODEL: BX04
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 2100W*2
Stereo power 4Ω 3400W*2
Stereo power 2Ω: 4000W*2
bridge power 8Ω : 6800W
bridge power 4Ω: 8000W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 8.3kg
-------------------------------------------------------------------------------------------------------------------------------------MODEL: BX03
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 1800W*2
Stereo power 4Ω: 3000W*2
Stereo power 2Ω: 3800W*2
bridge power 8Ω : 6000W
bridge power 4Ω: 7600W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 8.2kg
-------------------------------------------------------------------------------------------------------------------------------------MODEL: DX17
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 1700W*2
Stereo power 4Ω :2800W*2
Stereo power 2Ω: 3100W*2
bridge power 8Ω :5600W
bridge power 4Ω: 6200W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 7.9kg
-------------------------------------------------------------------------------------------------------------------------------------MODEL: DX14
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 1400W*2
Stereo power 4Ω :2300W*2
Stereo power 2Ω: 2600W*2
bridge power 8Ω :4600W
bridge power 4Ω: 5200W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 7.6kg
-------------------------------------------------------------------------------------------------------------------------------------
MODEL: DX11
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 1100W*2
Stereo power 4Ω :1800W*2
Stereo power 2Ω: 2000W*2
bridge power 8Ω : 3600W
bridge power 4Ω: 4000W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 7kg
-------------------------------------------------------------------------------------------------------------------------------------
MODEL: DX09
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 900W*2
Stereo power 4Ω :1500W*2
Stereo power 2Ω: 1700W*2
bridge power 8Ω : 3000W
bridge power 4Ω: 3400W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 6.8kg
--------------------------------------------------------------------------------------------------------------------MODEL: B100
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 1000W*2
Stereo power 4Ω :1700W*2
Stereo power 2Ω: 2100W*2
bridge power 8Ω : 3400W
bridge power 4Ω: 4200W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 6.3kg--------------------------------------------------------------------------------------------------------------------------------MODEL: B80
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 800W*2
Stereo power 4Ω :1450W*2
Stereo power 2Ω: 1900W*2
bridge power 8Ω : 2700W
bridge power 4Ω: 3700W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 6kg-----------------------------------------------------------------------------------------------MODEL: B65
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 650W*2
Stereo power 4Ω :1150W*2
Stereo power 2Ω: 1700W*2
bridge power 8Ω : 2200W
bridge power 4Ω: 3200W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 5.8kg
------------------------------------------------------------------------------------------------
MODEL: B50
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 500W*2
Stereo power 4Ω :900W*2
Stereo power 2Ω: 1250W*2
bridge power 8Ω : 1750W
bridge power 4Ω: 2300W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 5.6kg
--------------------------------------------------------------------------------------------------MODEL: B35
1U+Class D+ PFC digital SMPS 2 channel power amplifier(stable working in full voltage range (90-264V)
Stereo power 8Ω: 350W*2
Stereo power 4Ω : 600W*2
Stereo power 2Ω: 800W*2
bridge power 8Ω : 1200W
bridge power 4Ω: 1600W
Power supply voltage: PFC style 90V-260V 50-60HZ Net weight: 5.4kg--------------------------------------------------------------------------------------------
1U+Class D+ PFC digital SMPS 2
(stable working in full voltage range (90-264V))
Frequency response(20Hz-20kHz) : +/-0.5Db
THD: ≤0.35%(8Ω，20Hz--20kHz，1/8 rated power)
Inter modulation distortion :≤0.15%(8Ω，60+7kHz，1/8 rated power)
S/N (A weight) : ≥104dB
Sensitivity (rated power 8Ω): 0.775V/1V/32dB
Damping Factor: ≥600
Slew Rate: ＞20V/us
Input impedance ,Balanced ＞20kΩ / Unbalanced＞10kΩ
Conversion rate: ≥20v/uS
Resolution: ≥70dB
Protection: Soft start,VHF, DC short circuit.Overload,Clipping ,Distortion limit,Overheat Power supply voltage: 90V~264V
Dimensions W x D x H (mm):483*381*44mm
(stable working in full voltage range (90-264V))
Frequency response(20Hz-20kHz) : +/-0.5Db
THD: ≤0.35%(8Ω，20Hz--20kHz，1/8 rated power)
Inter modulation distortion :≤0.15%(8Ω，60+7kHz，1/8 rated power)
S/N (A weight) : ≥104dB
Sensitivity (rated power 8Ω): 0.775V/1V/32dB
Damping Factor: ≥600
Slew Rate: ＞20V/us
Input impedance ,Balanced ＞20kΩ / Unbalanced＞10kΩ
Conversion rate: ≥20v/uS
Resolution: ≥70dB
Protection: Soft start,VHF, DC short circuit.Overload,Clipping ,Distortion limit,Overheat Power supply voltage: 90V~264V
Dimensions W x D x H (mm):483*381*44mm
1U+Class D+ PFC digital SMPS 4 channel power amplifier
(stable working in full voltage range (90-264V))
Frequency response(20Hz-20kHz) : +/-0.5Db
THD: ≤0.35%(8Ω，20Hz--20kHz，1/8 rated power)
Inter modulation distortion :≤0.15%(8Ω，60+7kHz，1/8 rated power)
S/N (A weight) : ≥104dB
Sensitivity (rated power 8Ω): 0.775V/1V/32dB
Damping Factor: ≥600
Slew Rate: ＞20V/us
Input impedance ,Balanced ＞20kΩ / Unbalanced＞10kΩ
Conversion rate: ≥20v/uS
Resolution: ≥70dB
Protection: Soft start,VHF, DC short circuit.Overload,Clipping ,Distortion limit,Overheat Power supply voltage: 90V~264V
Dimensions W x D x H (mm):483*381*44mm
(stable working in full voltage range (90-264V))
Frequency response(20Hz-20kHz) : +/-0.5Db
THD: ≤0.35%(8Ω，20Hz--20kHz，1/8 rated power)
Inter modulation distortion :≤0.15%(8Ω，60+7kHz，1/8 rated power)
S/N (A weight) : ≥104dB
Sensitivity (rated power 8Ω): 0.775V/1V/32dB
Damping Factor: ≥600
Slew Rate: ＞20V/us
Input impedance ,Balanced ＞20kΩ / Unbalanced＞10kΩ
Conversion rate: ≥20v/uS
Resolution: ≥70dB
Protection: Soft start,VHF, DC short circuit.Overload,Clipping ,Distortion limit,Overheat Power supply voltage: 90V~264V
Dimensions W x D x H (mm):483*381*44mm
