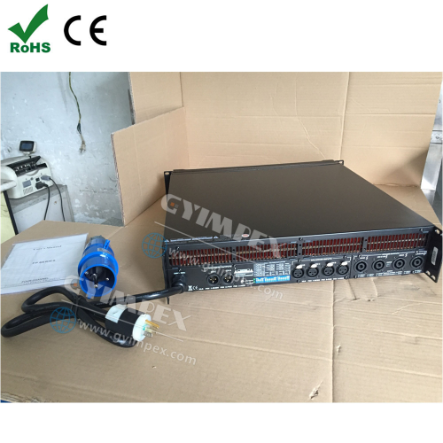

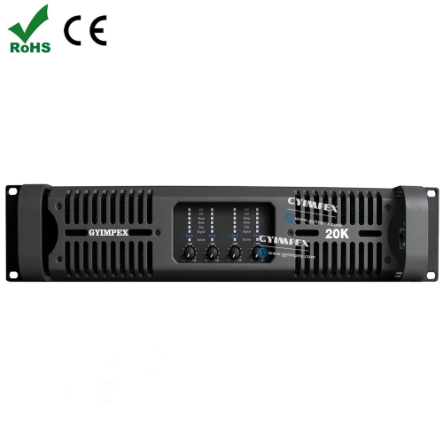

20K Class TD 4 channel switching power amplifier

ITEM : 20K

4 channel Class TD Switching Power Amp

8ΩStereo Power(RMS) 2200WX4

4ΩStereo Power(RMS) 4000WX4

2ΩStereo Power(RMS) 5000WX4

8ΩBridged Power(RMS) 8000WX2

4ΩBridged Monon Power 10000WX2

Output Power 20-20kHz, 1W with 1 khz

Signal Noise Ration(dB) 110dB


THD+N(Rated power 4Ω/KHz)% <0.1%

Damping coefficient 500

Input gain 23,26,29,32,35,38,41,44dB

Input connectors Combo XLR type,3pin(NEUTRIK)

Link Connectors XLR type,3pin male(NEUTRIK)

Input Impedance 20kΩBalanced /10kΩUnbalanced/10kΩUnbalanced

Output Connectors Speakon Connectors(NEUTRIK)

Minimum power-up voltage 180-260V~50-60Hz

Power Requirement 200-240V~50-60Hz

Protection Short circuit, open circuit, thermal, overload

DC, super audio and other protective devices

Dimension 483x377x88mm

Weight(net) 18Kg

Packing Dimension 575x555x140mm

Gross weight 21.5kg
